      Teltonika RUT240 Router 4G LTE 1 slot SIM

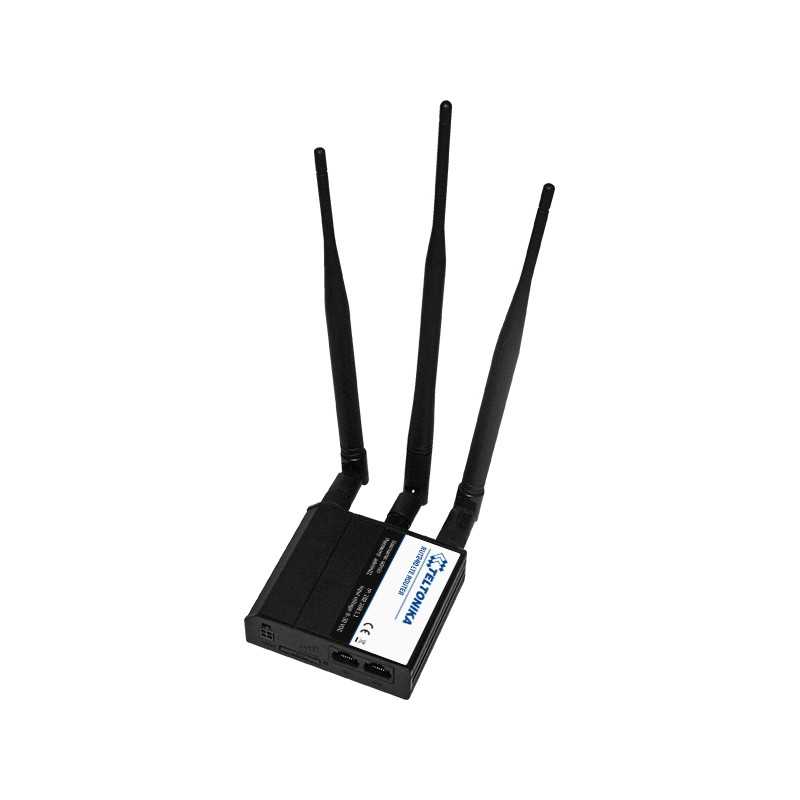

      Il RUT240 è un router WiFi industriale 4G / LTE compatto, economico e sicuro per applicazioni professionali.

      Offre prestazioni elevate per comunicazioni cellulari mission-critical in ambienti difficili e pericolosi dove è richiesta un’ampio range di temperature operative.

      Dotato di un alloggiamento per scheda SIM, input / output digitali e LED di stato della potenza del segnale, garantisce una facile implementazione e gestione della rete. I connettori SMA esterni consentono di collegare le antenne desiderate.

      Il router industriale RUT240 supporta funzionalità di sicurezza avanzate ed è ampiamente utilizzato per il backup 4G, connessione remota, gestione banda, VPN avanzata e servizi di tunneling nelle soluzioni di rete IoT.

      specifiche

      MOBILE
      Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
      Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
      Bridge Direct connection (bridge) between mobile ISP and device on LAN
      SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
      Black/White list (optional) Operator black/white list
      Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services
      Band management Band lock, Used band status display
      WIRELESS
      Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
      WiFi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
      WiFi security WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation
      SSID SSID stealth mode and access control based on MAC address
      WiFi users Up to 50 simultaneous connections
      Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
      ETHERNET
      WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
      LAN 1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
      NETWORK
      Routing Static routing, Dynamic routing (Optional - BGP, OSPF v2, RIP v1/v2)
      Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMNP, MQTT, Wake On Lan (WOL)
      VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
      Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
      Firewall Port forward, traffic rules, custom rules
      DHCP Static and dynamic IP allocation, DHCP Relayd
      QoS Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
      DDNS Supported >25 service providers, others can be configured manually
      Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
      Load balancing Balance your internet traffic over multiple WAN connections
      NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
      SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
      SECURITY
      Authentication Pre-shared key, digital certificates, X.509 certificates
      Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
      Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
      WiFi security WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes, Client separation
      VLAN Tag based VLAN separation
      Mobile quota control Set up custom data limits for the SIM card
      WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
      Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
      VPN
      OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods
      OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
      IPsec IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
      GRE GRE tunnel
      PPTP, L2TP Client/Server services can run simultaneously
      Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
      SSTP SSTP client instance support
      MONITORING & MANAGEMENT
      WEB UI HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
      FOTA Firmware update from sever, automatic notification
      SSH SSH (v1, v2)
      SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
      TR-069 (optional) OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
      MQTT MQTT Broker, MQTT publisher
      SNMP SNMP (v1, v2, v3), SNMP trap
      JSON-RPC Management API over HTTP/HTTPS
      MODBUS MODBUS TCP status/control
      RMS Teltonika Remote Management System (RMS)
      SYSTEM CHARACTERISTICS
      CPU Atheros Hornet, MIPS 24Kc, 400 MHz
      RAM 64 MB, DDR2
      FLASH memory 16 MB SPI Flash
      FIRMWARE / CONFIGURATION
      WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
      FOTA Update FW/configuration from server
      RMS Update FW/configuration for multiple devices
      Keep settings Update FW without losing current configuration
      FIRMWARE CUSTOMIZATION
      Operating system RutOS (OpenWrt based Linux OS)
      Supported languages Busybox shell, Lua, C, C++
      Development tools SDK package with built environment provided
      INPUT/OUTPUT
      Input 1 x Digital non-isolated input (on 4 pin power connector)
      Output 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector)
      Events SMS, EMAIL, RMS
      POWER
      Connector 4 pin industrial DC power socket
      Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max
      PoE (passive) Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at
      Power consumption < 5 W
      PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
      Ethernet 2 x RJ45 ports, 10/100 Mbps
      I/O’s 1 Digital Input, 1 Digital Output on 4 pin power connector
      Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
      SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
      Power 4 pin DC connector
      Antennas 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
      Reset Reset/restore to default button
      PHYSICAL SPECIFICATION
      Casing material Aluminum housing, plastic panels
      Dimensions 83 mm x 74 mm x 25 mm (H x W x D)
      Weight 125 g
      Mounting options Bottom and sideways DIN rail mounting slots
      OPERATING ENVIRONMENT
      Operating temperature -40 °C to 75 °C
      Operating humidity 10% to 90% non-condensing
      Ingress Protection Rating IP30
      MTBF 310000 h
      REGULATORY & TYPE APPROVALS
      Regulatory CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance
      Operator Verizon, AT&T
      EMI IMMUNITY
      Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0
      FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)
      ESD EN61000-4-2:2009
      RS EN 61000-4-3:2006 + A1:2008 + A2:2010
      EFT EN 61000-4-4:2012
      Surge immunity (AC Power Line) EN 61000-4-5:2006
      Surge immunity (Ethernet ports) EN 61000-4-5:2014, clause 7.1 of ITU-T K21
      CS EN 61000-4-6:2009
      DIP EN 61000-4-11:2004
      RF
      Standards EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1
      FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017)
      RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1
      AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017
      SAFETY
      Standards IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
      AS/NZS 60950.1:2015
      EN 50665:2017, EN 62311:2008
      FCC 47 CFR Part 1 1.1310
      RSS-102 Issue 5 (2015)
