model | |

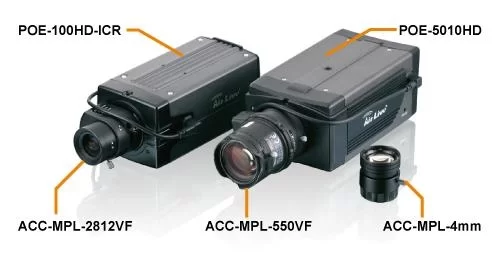

Room | | Room Type | | - Indoor Box Type | | Image Sensor | | - 1/2.5” 5 Mega Pixel Color CMOS Sensor | | Sensor Resolution | | - 2592X1920 | | LensType | | - C/CS Mount Lens Support | | -Removable Lens | | Night vision | | - Built-In Removable IR Cut Filter | | Minimum Illumination | | - 0.5 LUX | | Mechanical IR-Cut Filter | | - Yes | | Auto Iris | | - DC Iris Support | | Viewing Angle | | - Depend on lens |
|
Video | | Video compression | | - H.264 High/Main/Baseline Profile, MPEG4 Simple Profile and MJPEG | | Video Profiles | | - 2 | | Resolution and Frame Rate | | - 2592X1920 @ 8fps | | - 2048x1536 @ 15fps | | - 1920x1080 @ 20fps | | - 1280x1024 @ 30fps | | - 1280x960 @ 30fps | | - 1280x720 @ 30fps | | - 720x480 @ 30fps | | - 640 x 480 @ 30fps | | - 320x240 @ 30fps | | - 176x144 @ 30fps | | Streaming | | - Multi-profile streaming | | - Streaming over UDP, TCP, or HTTP | | - M-JPEG streaming over HTTP (for non IE browsers) | | - 3GPP mobile view | | - Configurable frame rate and bandwidth | | - Support both CBR and VBR | | ROI | | Yes one | | Image processing | | - AE, AWB | | - Noise reduction | | - Color, brightness, sharpness, contrast, Hue | | - Mirror/Flip | | - Text, time and date OSD | | digital zoom | | - 10X |
|
Audio | | Audio encoders | | RTSP: | | - 3GPP | | Audio Streaming | | - Two way | | Audio Inputs/Outputs | | - speaker port and microphone port |
|
Network | | Ethernet | | -One RJ45 port; IEEE 802.3u Compliant 10/100 Mbps Fast Ethernet with Auto-MDIX | | PoE or Wireless | | - IEEE802.3af | | Supported Protocols | | - TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP and IPV6 | | Security | | - Password protection | | - IP filter | | - HTTPS | | Users | | - Up to 20 simultaneous users |
|
LED and Button | | Power LEDs | | - Amber Color | | Links/Act. LEDs | | -Green Color | | Reset Button | | - Reboot and Factory Default (Push and Hold Over 5 Sec) |
|
General | | Network Processor | | - Basic DSP | | System ROM | | - 32MByte NAND Flash | | System RAM | | - 128Mbyte DDR SDRAM | | Power Supply | | - DC12V | | power consumption | | - 8 Watts Max. | | Connector | | - RJ-45 10BaseT/100BaseTX | | - 12V DC power jack | | Microphone/Speaker jack | | - DIDO | | - Reset button | | environment | | - Operation: Temp: 0℃ ~ 50℃ Humidity: 20% ~ 85% non-condensing | | - Storage: Temp: -15℃ ~ 60℃ Humidity: 0% ~ 90% non-condensing | | SD card slot | | - SD/SDHC | | Dimension | | - 134*79*59mm |
|

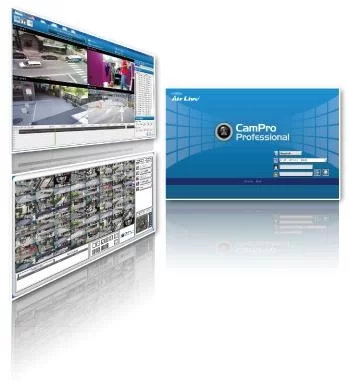

System Integration | | Software | | - Campro Express 64, Campro Professional | | - Search & Installation - IP Wizard II | | Event Triggers | | - Motion detection | | - External input via DI interface | | motion detection | | - Up to 3 zones | | Event handlers | | - FTP or NAS file upload | | - Email alter | | - HTTP, and TCP notification | | - DO (digital output) alarm | | UPNP extension | | - yes | | Application Programming Interface | | - ONVIF 2.0 | | - Open API for software integration | | - SDKs | | Video Buffers | | - Pre- and post-alarm buffering | | Alarm Events | | - File upload via FTP or email | | - Notifications via email, HTTP, and TCP | | - External output activation | | - Save to SD card |
|
Viewing System | | os | | - Windows® XP, Vista, 7 | | Browsers | | - IE 6.0 or later, Firefox 2.0 or later, Safari | | Cell phones | | - With 3GPP player | | Video Players | | - VLC, Quick Time, Real Player, Core Player |
|
