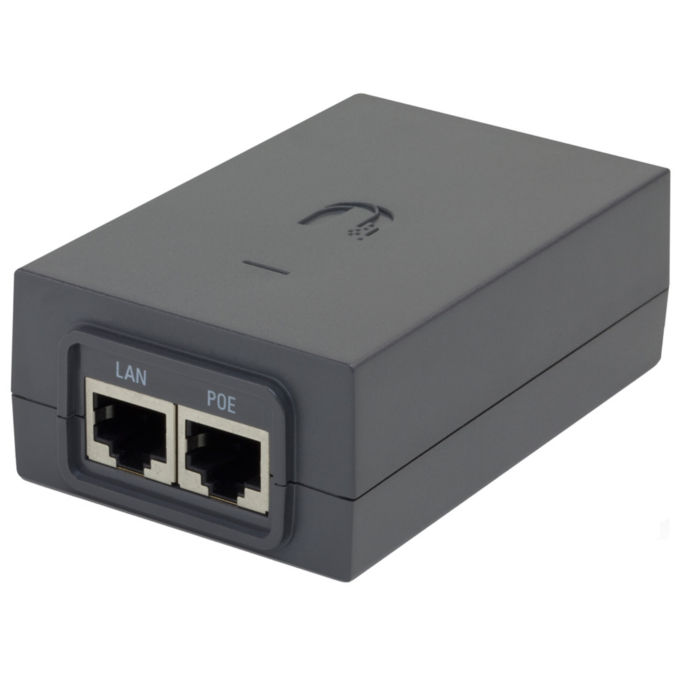

PoE Ubiquiti 24V 12W Gigabit POE-24-12W-G Ubiquiti
€13.30
PoE Ubiquiti 24V 12W Gigabit POE-24-12W-G Ubiquiti
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions
PoE Ubiquiti 24V 12W Gigabit POE-24-12W-G Ubiquiti
PoE Adapter
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Video / airVision®
* Check product specifications to verify PoE compatibility.

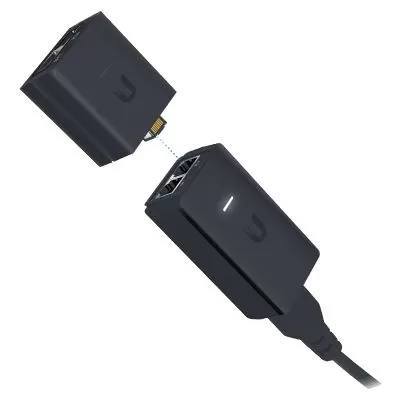

Ubiquiti PoE Adapter Compatibility with the airGateway
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.
The airGateway is available in three models:
- airGateway Standard model with an internal antenna
- airGateway Pro Dual-Band Wi-Fi model with an internal antenna
- airGateway-LR Long-range Wi-Fi model with an external antenna for extended range
The airGateway plugs into any of these PoE Adapters:
| Model Number | Compatibility |
| POE-15-12W | ✓ |
| POE-24-12W | ✓ |
| POE-24-12W-G | ✓* |
| POE-24-7W | ✓* |
| POE-24-12W-G-WH | ✓* |
*airGateway maximum LAN port speed: 100 Mbps
Specifications:
| Dimensions | 87 x 44 x 29 mm (3.43 x 1.73 x 1.14") |
| Weight | 99.4 g (3.51 g) |
| Output voltage | 24VDC @ 0.5A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote Reset Capability | Yes |
| Reset button | Yes |
| Input voltage | 90-260VAC @ 47-63 Hz |
| Input current | 0.3A @ 120VAC, 0.2A @ 240VAC |
| Inrush Current | <30A Peak @ 120VAC, <60A Peak @ 230VAC |
| Efficiency | 75+% |
| Output ripple | 1% Max. |
| Switching frequency | 50 kHz |
| Line regulation | ± 1% |
| Load regulation | ± 3% |
| 2 pairs powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| Operating temperature | 0 to 40° C ( 32 to 104° F) |
| Storage temperature | -30 to 70°C ( -22 to 158° F) |
| Operating humidity | 35 to 95% Non condensing |
| AC connector | IEC-320 C6 |
| Data IN/PoE | RJ45 Shielded Socket |
| Surge protection | Difference and Common Mode |
| Clamping protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak pulse current | 36A (10/1000 μs) Data |
| Shunt capacitance | <5 pF data |
| Tempo di risposta | <1 ns |
| Compliance | IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B |
| AC Cable with Earth Ground | USA, EU, AR, BR, UL, CCC, Mexico |
