      N.Plug Airlive

      Access Point, Router and wi-fi repeater

      Quantity :
      • Security policySecurity policy by express courier, order processing is immediate
      • We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collectionWe accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
      • Are you a reseller or an installer?Are you a reseller or an installer? Contact us to access the reserved conditions

      Repeater, Access Point, Router

      icone N.plug
      Expand your wi-fi network in a few moments

      n.plug

      The AirLive N.Plug is a wireless B/G/N multi-mode (Repeater/AP/Router) network device with support of 3G USB dongle and broadband WAN.  The size and casing of the device are compact and well designed which is great for users want to travel light but desire for complete wireless function support as well.
      N.Plug in repeater mode is also great for users who are looking to extend their current wireless network but use as little as possible.


      Extend coverage distance of wireless network

      Most people are concerning the distance of existing wireless network. With N.Plug, extend coverage distance of your existing wireless network will never be an issue anymore.  Multiple of N.Plug with WPS function in Repeater Mode can easily get the job done, and without replace existing network equipments.
      The device can be quickly configured by simple push of the WPS button on the router and repeater.
      It is an ideal indoor wireless solution for hotel, school, clinic, home and large office.


      Multi-mode Switching at Ease

      By a simple flick of a hardware switch on the N.Plug, user can choose between three different modes of Repeater, AP,and Router. User will save countless configuration times and effort with the simple to use multi-mode hardware switch
      .

      selettore

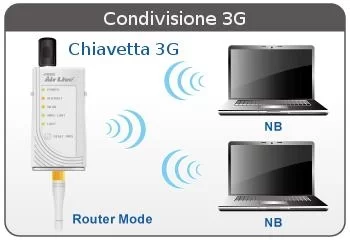

      Total Solution for 3G and Broadband Sharing

      N.Plug is the most convene and portable internet sharing device on the market. With the build-in USB 2.0 port and WAN, the N.Plug can support either 3G USB dongle or xDSL WAN depended on the situation.  User will be able to share its 3G mobile connection or ADSL internet connection within N.Plug’s powerful wireless N radius range.

      3G

      porte

      Complete functionality for Web User Interface


      N.Plug software system is built upon the new AirLogic software architecture. The under laying system core is our legendary wireless engine that offers superior performance and rich set of functions. It features firmware recovery system, multi-operation wireless mode, Virtual AP function, bandwidth control, and lots other features that make AirLive wireless products famous in the industry.

      Sleek Compacted Design

      The vastly versatile N.Plug is compliant to IEEE 802.11 B/G/N standard which are the most common and widely use wireless standard in the world.  it can reach to 150Mbps when connects to an 802.11n client.
      It doesn't require additional power supplies, it is simply connected to a 220V alectric socket.

      design


      Specifications:
      ProductAirLive N.Plug
      Main ChipsetRealtek RTL8196C + RTL8188CE
      Flash + SDRAM4MB Flash + 32MB SDRAM
      WAN Port10/100M UTP Port x 1 (Auto MDI/MDI-X)
      LAN Port10/100M UTP Port x 1 (Auto MDI/MDI-X)
      USB PortUSB 2.0 Type A x 1 (for 3G USB Modem Connection)
      Frequency Band2.4000~2.4835GHz (Industrial Scientific Medical Band)
      Data Rate11b: 1/2/5.5/11Mbps
      11g: 6/9/12/24/36/48/54Mbps
      11n (20MHz): MCS0-7, up to 72Mbps
      11n (40MHz): MCS0 7 up to 150Mbps

      Output Power

      11n: 13±1.5dBm, 11g: 13±1.5dBm, 11b:16±1.5dBm
      Antenna3dBi Detachable Dipole Antenna with RP-SMA x 1
      Power ModuleLess than 1W Standby
      2W maximum
      Power AdapterAverage 5V, 1.2A Power Module Inside
      Dimension32(H) x 50(W) x 67.85(D) mm
      TemperatureOperating: 32~104°F (0~40°C)
      Storage: -4~140°F (-20~60°C)
      HumidityOperating: 10~90% (NonCondensing)
      Storage: Max. 95% (NonCondensing)
