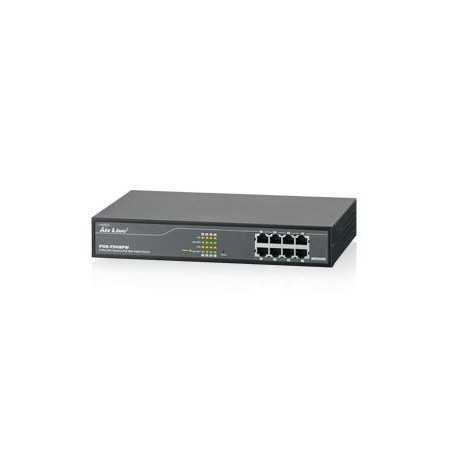

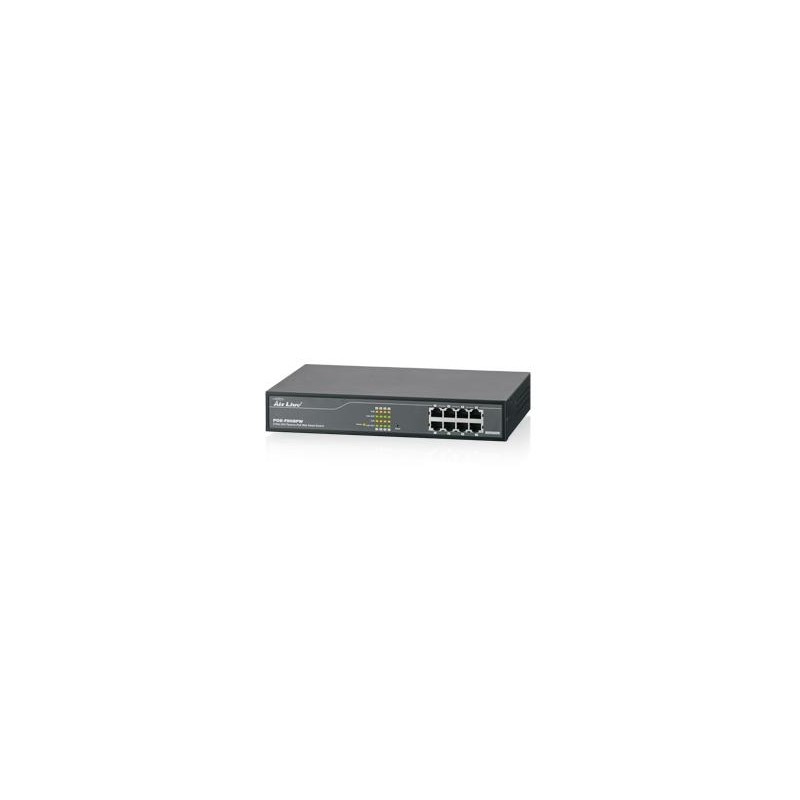

Switch POE-FSH8PW 8 Ports 24V Airlive
€168.20
Switch PoE 8 Ports 24V
POE-FSH8PW Airlive
Ideal for powering all Ubiquiti devices that work with PoE on 24V, such as Nanostation series, Picostation, UniFi, PowerBeam, AirGrid, nanobeam, Rocket.
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions
POE-FSH8PW Airlive
With 8 Ports PoE 24V
With 8 Ports PoE 24V
Ideal for powering all Ubiquiti devices that work with PoE on 24V, such as Nanostation series, Picostation, UniFi, PowerBeam, AirGrid, nanobeam, Rocket.
It is a PoE switch 24V with possibility of installation on the rack cabinet. It provides 24V DC power supply and data transmission over a single Ethernet cable.
It also has a remote management function to enable / disable the power on PoE ports.

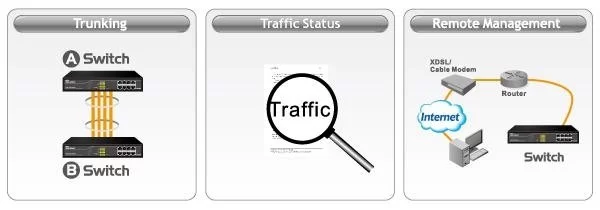

POE-FSH8PW also supports other useful network management functions, such as port based VLAN, Tag VLAN, bandwidth control per port, Trunking and Broadcast Storm Control.
For wireless HotSpot or WISP the switch allows the creation of a more secure and flexible network infrastructure as well as facilitating and lower cabling costs and space caused by the installation of individual power supplies PoE otherwise needed.
POE-FSH8PW for HotSpot
The switch is a complete solution for hotels, restaurants and public places in general. No need for additional plug points to power the access point, just connect an ethernet cable from the access point to the switch (of course, the access point must support PoE power supply via 24V).

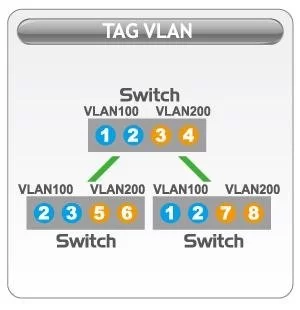

VLAN tag Based
Unlike conventional switches, POE-FSH8PW supports many advanced features. For example, it allows network administrators to configure VLAN groups across different switches.
Remote management and updating via web browser
The switch allows users to manage through local LAN or over the Internet from web browser. It also supports general statistics to monitor usage and network traffic.
Specifications:
It also has a remote management function to enable / disable the power on PoE ports.
POE-FSH8PW also supports other useful network management functions, such as port based VLAN, Tag VLAN, bandwidth control per port, Trunking and Broadcast Storm Control.
For wireless HotSpot or WISP the switch allows the creation of a more secure and flexible network infrastructure as well as facilitating and lower cabling costs and space caused by the installation of individual power supplies PoE otherwise needed.
The switch is a complete solution for hotels, restaurants and public places in general. No need for additional plug points to power the access point, just connect an ethernet cable from the access point to the switch (of course, the access point must support PoE power supply via 24V).
VLAN tag Based
Unlike conventional switches, POE-FSH8PW supports many advanced features. For example, it allows network administrators to configure VLAN groups across different switches.
Remote management and updating via web browser
The switch allows users to manage through local LAN or over the Internet from web browser. It also supports general statistics to monitor usage and network traffic.
Specifications:
| Standards |  IEEE 802.3 10BaseTIEEE 802.3u 100BaseTXIEEE 802.3x Flow control |
 Hardware | Interface: 8 x 10/100BaseT(X) with 8 PSE/Passive PoE PortsMAC Address: 1KBuffer Memory: 512K bitsMethod: Store and Forward |
| Support AirLive Models | AP60, G.DUO, AirMax2, AirMax5 |
| Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP |
| LAN Port | 10/100M UTP Port x 1 (Auto MDI/MDI-X)100BaseTX Cat. 5 UTP/STP |
| LED Indicators | Port LED: LINK/ACT, PoE ACT/StatusStatus LED: Power |
| Power Input | 100~240V/AC, 50~60Hz |
| Power Output | 24V/DC Per Port Output30Watt Max Per Port Max130W Total Power8 Ports at Full 15.4 Watt Output SupportedPower Pin: 4,5,7,8Data Pin: 1,2,3,6 |
| 130 Watts (Max) |
| Dimensions | 266 × 160 × 44 mm (L x W x H) |
| Weight | 1.6 kg |
| Operating Temperature | 0 to 65℃ |
| Storage Temperature | -20 to 90℃ |
| Humidity | 10 to 90% RH (non-condensing) |
| Certifications | FCC Class A, CE |
