Panel Antenna 5GHz 19dBi
€31.90
Tax included
5GHz 19dBi antenna
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions

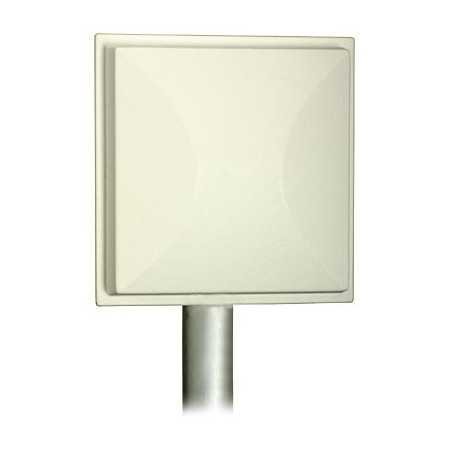

5GHz 19dBi panel antenna
It is a directional antenna operating in the bands around 5GHz.
The supplied bracket allows the assembly of the antenna in horizontal, vertical or intermediate polarization (+/- 40 degrees); designed for use in client workstations and point-to-point links in general.
The antenna was made with high quality materials and components:
- UV-resistant plastic cover;
- low signal loss thanks to the shielded connector (Teflon and gold);
- bracket and other fastening materials made of stainless materials;
- antenna and internal components protected against the aging process with a special protective layer
The package includes:
N°1 19dBi panel antenna
N°1 L-shaped bracket for pole mounting
N°1 U-bracket 50mm
Technical features:
| Gain [dBi] | 19 +/- 4 |
| Frequency range [GHz] | 5.15 – 5.75 |
| Polarization | Vertical/Horizontal/Tilted |
| wrapper | UV resistant plastic |
| Shielding | Aluminum |
| Front/back ratio [dB] | >30 |
| Horizontal opening [°] | 21 |
| Vertical opening [°] | 17 |
| vswr extension | <1.85 |
| Tilt adjustment [°] | +/- 40 |
| Impedance [Ohm] | 50 |
| Connector | N/female |
| Dimensions [mm] | 200x200 |
| Weight kg] | 0.6 |
| Wind resistance [km/h] | 150 |
| Protection class | IP66 |
0233
Data sheet
- Type of Radiation
- Directional
Specific References
- MPN
- 0233
