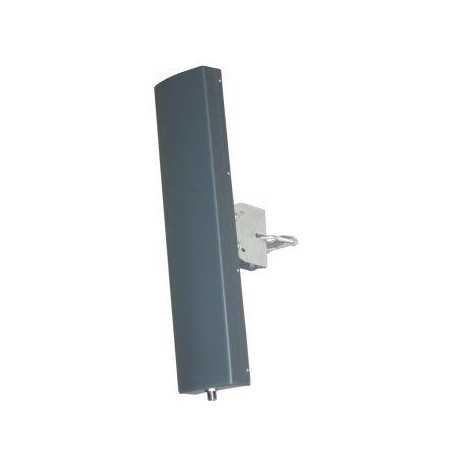

SECTOR Antenna professional 15 dBi 2,4GHz V
€77.46
Sector Antenna - Vertical Polarization
Gain 15 dBi
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions
SECTOR ANTENNA 15dBi PROFESSIONAL
Vertical polarization
Vertical polarization
Robust antenna, built for outdoor installation, weather-resistant and highly performing.
Ideal for covering large areas, working with all standard 2.4 GHz (802.11b / g / n).
Brackets for pole installation included.
Ideal for covering large areas, working with all standard 2.4 GHz (802.11b / g / n).
Brackets for pole installation included.
Specifications:
| Operating Frequences | 2400-2500MHz |
| Gain | 15dBi |
| VSWR (max) | 1,8 |
| Polarization | Vertical |
| Beam width (-3dB) H | 88° |
| Beam width (-3dB) V | 8° |
| Front to back ratio | >25dB |
| Cross polarization | >17dB |
| Impedance | 50 Ohm |
| Lighting protection | shorted for DC |
| Dimensions (without brackets) | 530x126x50mm |
| Weigth (without brackets) | 1,97 Kg |
| Connector | N-Female |
| Supported pole diameter | 38—51mm |
| Wind load (170km/h) | 89N |
5001
Data sheet
- Type of Radiation
- Sector
- Frequency
- 2.4 GHz
- Type of installation
- Exterieur
Specific References
- MPN
- 5001
