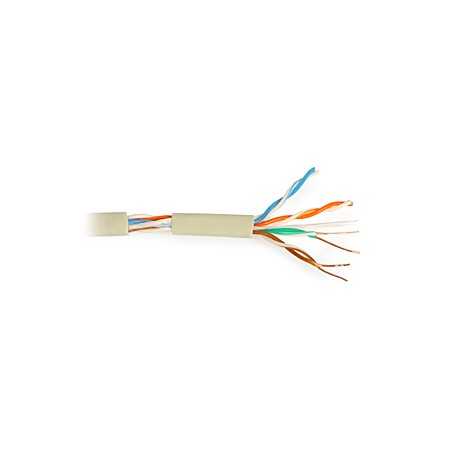

Network cable UTP, PVC, Cat. 5e Solid Grey (Indoor)
€0.29
Tax Included
Delivery in 4/6 days
Network cable cat. 5e UTP PVC INDOOR
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions
Network cable cat5e UTP PVC INDOOR
not shielded
High quality cable made of PVC for indoor use unshielded.
To order a whole skein insert 305 (305m) as the quantity when ordering.
Structure
| Cables | Solid copper cores Ø 0.50 mm (24 AWG) |
| Cables insulation | PE |
| Sheath | PVC (grey, RAL 7032) |
| External diameter [mm] | 5.0 ± 0.3 |
| Copper content [kg/km] | 14.9 |
| Weigth [kg/km] | 28.5 |
Electrical features
| Wave impedance [Ω] | 100 ±15 |
| Capacity of any transmission path at 1kHz [nF/km] | 50 ±1 |
| Nominal velocity propagation (NVP) [%] | 67 |
| Resistance of any transmission path at 1kHz [Ω/km] | ≤ 188 |
| Asymmetry in the ground paths of transmission capacity[pF/km] | ≤ 1600 |
| Insulation resistance [MΩ/km] | > 500 |
Installation and working
| Operating temperature range [oC] | -20...+70 |
| Operating humidity range [%] | 0...100 |
| Installation temperature range [oC] | 0...+50 |
| Minimum bending radius [distance / diameter ratio] | >8 |
