Panel Antenna Wi-Fi 2,4GHz 8dBi outdoor/indoor
      Panel Antenna Wi-Fi 2,4GHz 8dBi outdoor/indoor
      Panel Antenna Wi-Fi 2,4GHz 8dBi outdoor/indoor

      Panel Antenna Wi-Fi 2,4GHz 8dBi outdoor/indoor

      Review (0)
      €17.13
      Tax Included
      Last items in stock

      Directional panel antenna Wi-Fi 2,4GHZ 8dBi, vertical and horizontal polarization. Designed for installations both inside and outside of homes.

      Quantity :
      • Security policySecurity policy by express courier, order processing is immediate
      • We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collectionWe accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
      • Are you a reseller or an installer?Are you a reseller or an installer? Contact us to access the reserved conditions

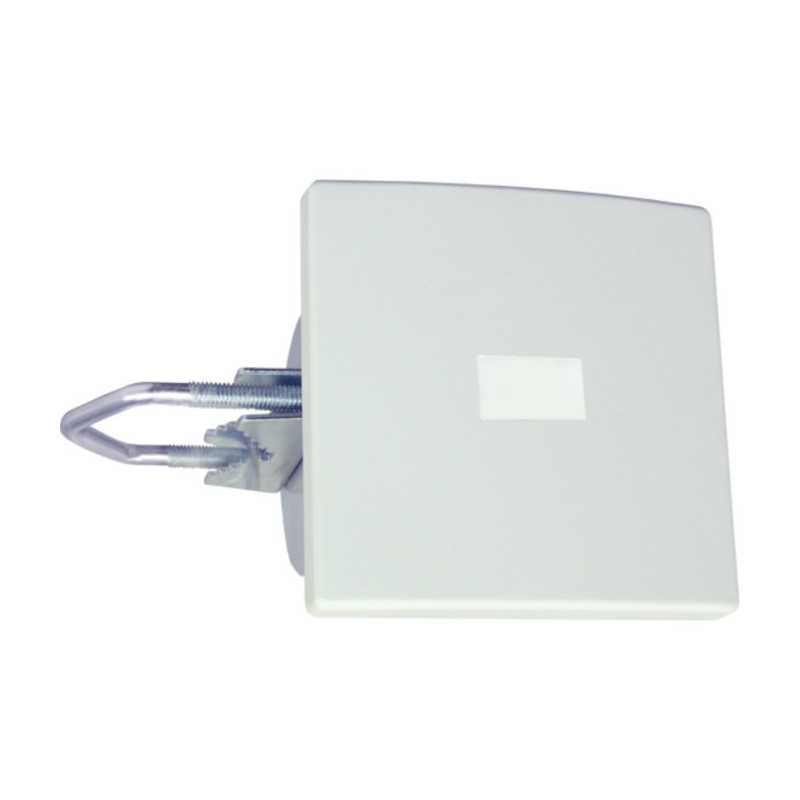

      Panel Antenna  Wi-Fi 2,4GHz 8dBi



      Panel Directional antenna, designed for installation both inside and outside of the buildings. It's built with the microstrip technology which ensures excellent repeatability of electrical parameters of the antenna in the production process. The design ensures excellent performance in all weather conditions, and consistent product quality.

      It comes with adjustable brackets for pole. It can work both in vertical polarization and horizontal polarization.

      Due to its small size, weight and appearance is a discreet and elegant solution.

      Compliance

      ETSI EN 302 326-3 (CE)Complies
      2002/95/EC (RoHS)Complies
      2002/96/EC (WEEE)Complies

      Electrical features

      Min frequency
      2400 MHz (2,4GHz)
      Max frequency
      2500 MHz (2,5GHz)
      Gain8dBi
      VSWR (Max)2.00:1
      PolarizationVertical or Horizontal
      Beam width at half power (-3dB) Horizontal57°
      Beam width at half power (-3dB) Vertical60°
      FBR (Front/Back Ratio)
      >20dB
      XPD (Cross Polarization Discrimination)>8dB
      Max power
      12W
      DC ground
      Impedance
      50Ω

      Grafico guadagno antenna pannello 8dBi



      Mechanical features

      Connector
      N female, RP-SMA jack
      Diameter for mounting on pole
      ø 38…51mm
      Dimensions (without bracket)
      115x115x18mm
      Weigth (with bracket)
      0.34kg

      Environmental features

      EnvironmentalIndoor and outdoor
      Wind load
      18N (170km/h)
      IP RatingIP64
      Temperaturefrom -30°C to 80°C



      Net-wifi
      0625
      1 Item

      Data sheet

      Color
      Type of Radiation
      Directional
      Free shipping
      N° of ports
      PoE Out
      LAN port speed
      Type of installation
      Shielding

      Specific References
