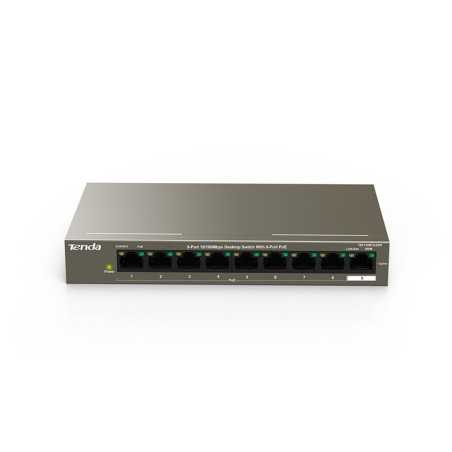

TEF1109P switch PoE 9 ports 10/100 of wich 8 PoE Tenda

TEF1109P switch PoE 9 ports 10/100 of wich 8 PoE Tenda

TEF1109P-8-63W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum PoE output power of 30W to each port and 58W to the whole device.

Up to 250 meters long distance transmission, beyond hundred meters transfer limit

Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters; Providing gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.

6KV lighting protection PoE switch is the real monitoring private switch

In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches. Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed.
Tenda TEF11 series switches have professional lightning protection design – 6kV port and power supply thunder prevents. These two protection design can effectively inhibit the lightning current from the network cable and power supply, which is equivalent to add a security Walls to the entire network monitoring system. And the test standards are far higher than the requirements of the state CCC. In the thunderstorms, the monitoring network can also provide stable and reliable services to the monitoring network and ensure the normal transmission of the images.

Outstanding PoE Power Supply

Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 58W to the whole device.

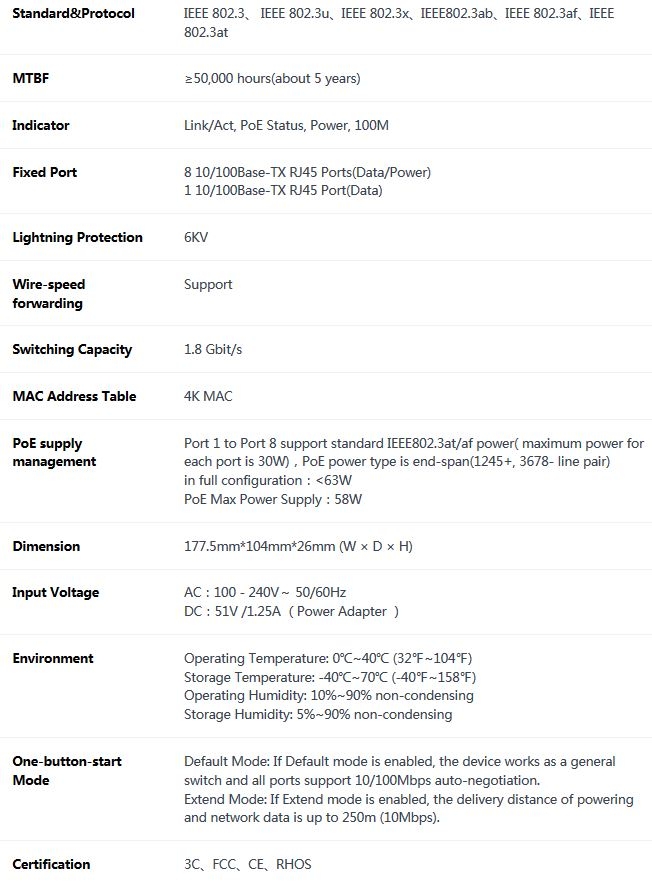

Specifications
